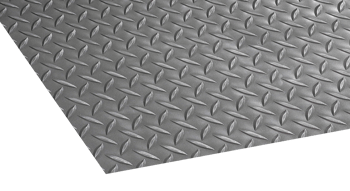

Military Deck Plate - Switchboard Runner

DRY AREA | RUNNER | NON-CONDUCTIVE | HIGH VOLTAGE APPLICATIONS

Military Deck Plate Switchboard Runner provides a high voltage solution for dry areas. The insulated slip resistant runner meets military specs MIL-DTL-15562G, Type 3 requirements.

FEATURES

  • Tested for performance following sulfuric acid immersion, oxygen bomb aging and UV light exposure.
  • Textured surface for better slip-resistance.
  • Flame resistant. Certified to MIL-STD- 1623
  • Abrasion resistant to ASTM D3884



APPLICATIONS

high voltage, dry areas, factories, finishing and assembly stations, military installations, near switchboards and other electrical equipment

Prop 65 WARNING: 65003

Additional Information

Sizes: 3' x 75'

Roll Sizes: No Customization, Full rolls only.

Colors: Gray

Pattern: Deck Plate

Thickness: 3/16"

Warranty: Total Confidence

Technical Data

  • Surface: Vinyl textured, meets MIL-DLT-155626, Type 3 requirements
  • Flammability: Meets MIL- STD-1623
  • Weight: 1.11 lbs per sq. ft.
  • Dielectric test voltage: 30,000 VAC
  • Proof tested over entire surface: 15,000 VAC
  • Recommended maximum use voltage: 3,000 VAC

Overall Thickness: 3/16”
