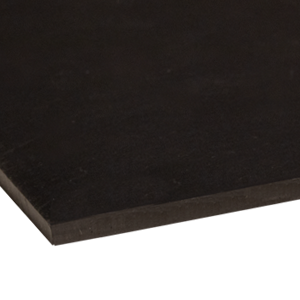

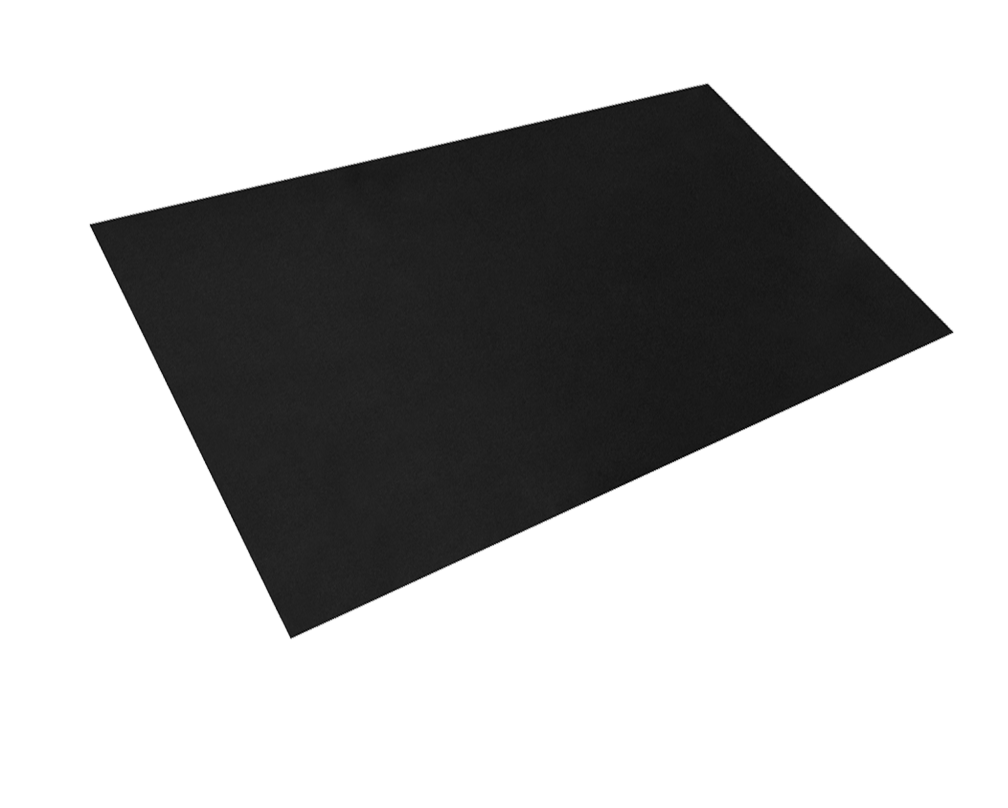

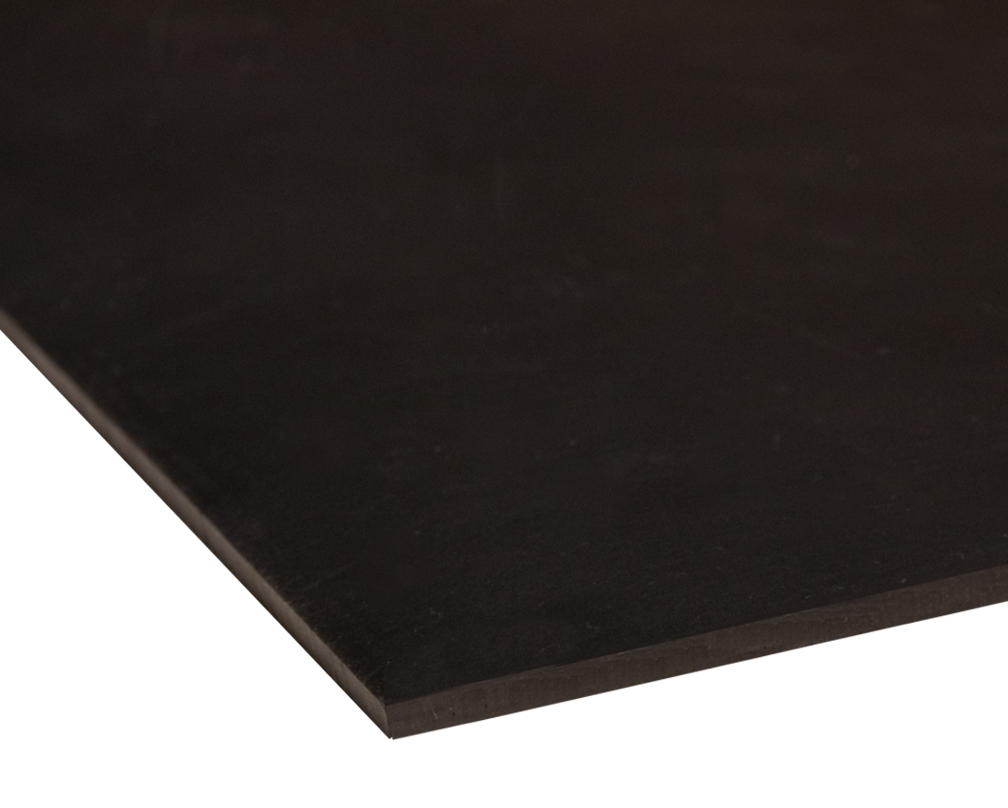

Military SMOOTH - Switchboard Runner

NON CUNDUCTIVE | HIGH VOLTAGE

Military Smooth Switchboard runner is our insulated runner meeting military spec Mil-DTL-15562G, Type 2 requirements.

FEATURES

  • Dielectric rating: 30,000 volts
  • Smooth easy to clean vinyl surface
  • Flame-resistant; certified to Mil Std-1623
  • Easy to install

APPLICATIONS

Provides a high voltage solution for dry areas

Factories

Military Installation, near Switchboard and other electrical equipment

Prop 65 WARNING: 65003

Additional Information

Sizes 3' x 75'

Roll Sizes: No Customization, full rolls only.

Colors BLACK

Pattern Smooth Surface

Thickness 1/8"

Warranty 1 Year

TECHNICAL DATA

Flammability: Meets Mil Std. 1623

Weight: 1.11lbs/ft

Surface: Smooth

Dielectric test voltage: 30,000 VAC

Proof tested over entire surface: 15,000 VAC

Recommended max use voltage 3,000 VAC

THICKNESS: 1/8"
